Controlled Torque Converter Clutch Slip and the Slow-Mo Suicide of Modern Automatic Transmissions
In no small part thanks to how controlled TCC slip is managed, modern automatic transmissions can have noticeably different drive feel and reliability.
Published by Dr Jiulin Teng on 18 Dec 2025
Keywords: torque-convertertransmission

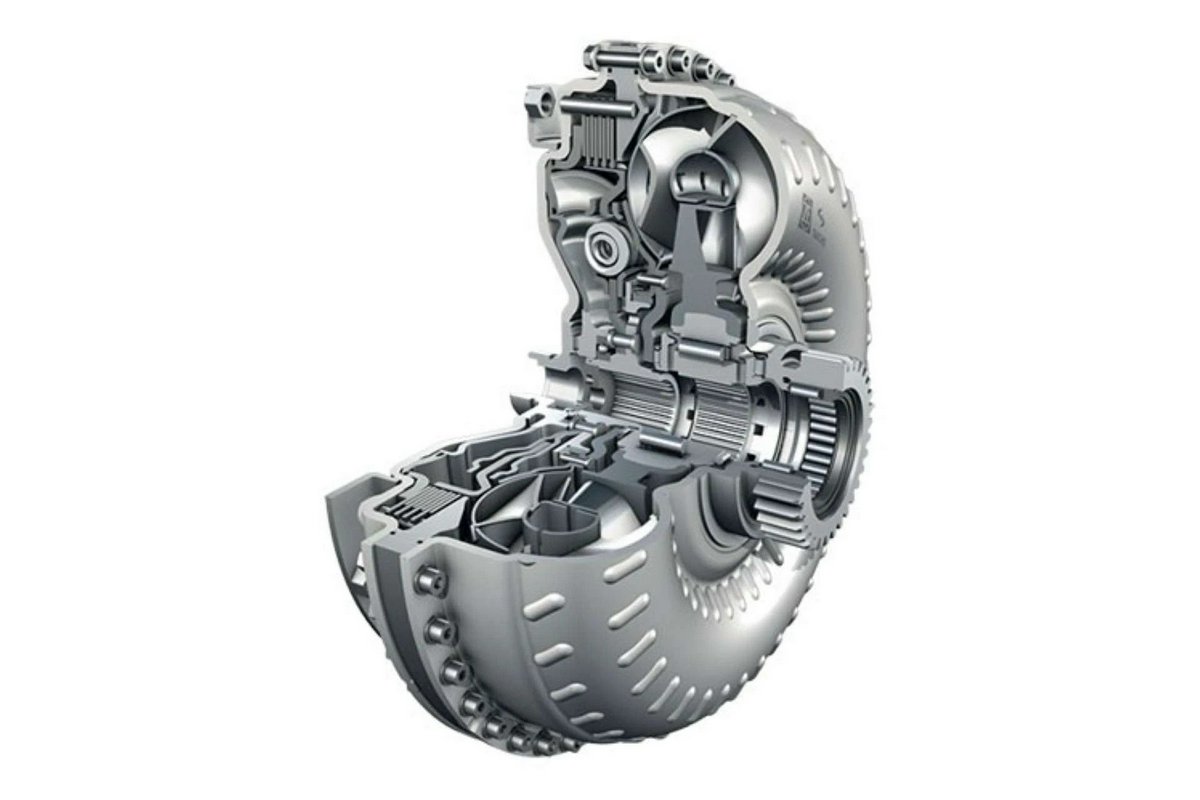

Since before the new millennium, torque converters in automatic transmissions have been using a lock-up clutch (TCC) to improve efficiency and drivability by locking the turbine to the impeller. These are multi-plate wet clutches like all clutch packs inside the automatic transmission, though usually smaller and with fewer friction plates. Initially, lock-up would only happen in higher gears during cruising, with efficiency being the main motivation. Notable transmissions such as the Aisin, Mercedes, and ZF 5-speed units all used this design philosophy, with the Aisin being the least aggressive in TCC lock-up and the ZF the most.
By the turn of the century, however, transmission providers started to chase drivability. While some manufacturers played with the idea in the 90s, ZF was the first to bring forward a mass market model—the 6HP—designed with controlled TCC slip in mind. With this new design philosophy, the TCC is no longer a binary on–off switch as in manual or double clutch transmissions; instead, the transmission control module uses a slip map that takes into account parameters such as input speed and torque and partially engages the TCC to improve drivability and reduce NVH. With such slip maps, the TCM would monitor engine speed and transmission input speed and manage a slip target that is the difference between the two: a higher slip target means more slip, and vice versa.
Unsurprisingly, this design comes at a cost. Slippage causes the friction plates to wear out over time and accelerates transmission fluid deterioration, both of which eventually lead to mechanical failure.
There are some factors that determine how much controlled TCC slip affects the reliability of the transmission:
- If the clutch materials are designed to tolerate continued slip, and the clutch packs are sufficiently sized, the TCC has a better chance. The difference between the ZF 6HP and early Mercedes 7G-Tronic are good examples, as the Mercedes followed the same philosophy but used a more traditional clutch design.
- If TCC lock-up happens later and fully opens with small torque changes, the clutch will have less wear. This comes at the expense of a more “direct” feel, best exemplified by the difference between the Aisin and ZF 8-speed units. While the Aisin is more reliable and longer-lasting, consumers mostly prefer the more connected feeling of a ZF 8HP.
- If the slip targets are lower; that is, less slip is allowed, the clutch will also have less wear. The evolution between the Mercedes 7G- and 9G-Tronic, between the ZF 6HP and 8HP, as well as between the Aisin 6- and 8-speed transmissions reflect this. Manufacturers want to use controlled slip to balance efficiency, drivability, and smoothness, but they also try to reduce slip to prolong the service life of the TCC.
- If the valve body or other aspects of the mechatronics have design flaws, the TCC can slip too much or too little at the wrong time, causing premature wear or sudden mechanical failure.
In no small part thanks to how controlled TCC slip is managed, modern automatic transmissions can have noticeably different drive feel and reliability. In general, we can say:
- Drivability: ZF 8HP > Aisin 10-speed > Mercedes 9G-Tronic > Aisin 8-speed
- Durability: Aisin 8-speed ~ Aisin 10-speed > Mercedes 9G-Tronic > ZF 8HP
